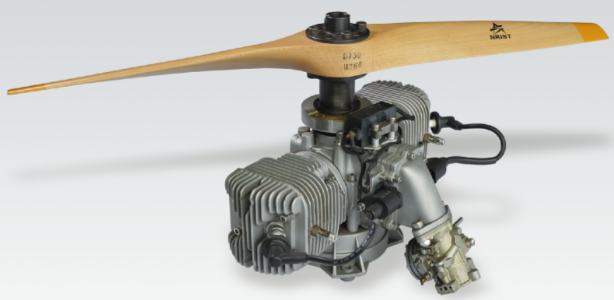

PMP350Q is a 2 cylinder opposed, 2 stroke air-cooled gasoline piston engine, equipped with high efficiency alternator, carburetor or EFI optional.
At present, it is applied to II-70 target aircraft, WG-20 platform UAV and Z-3 UAV.
Type: 2 cylinder opposed, 2 stroke air-cooled gasoline piston engine
Dimension:357mm*295mm*254mm
Net weight:>12.5kg
Max. power:18.5KW
fuel consumption rate:>0.45kg/(kw.h)
Power generation:300w
Feeding mode:carburetor or EFI
Limited altitude:7000m(EFI)
TBO:<100h
形式:双杠对置、二冲程风冷汽油活塞发动机
尺寸:357mm*295mm*254mm
本体重量:>12.5kg
最大功率:18.5KW
耗油率:>0.45kg/(kw.h)
发电功率:300w
供油方式:化油器或电喷
最大使用高度:7000m(电喷)
工作寿命:<100h
